Guitar Gallery 6 of 20

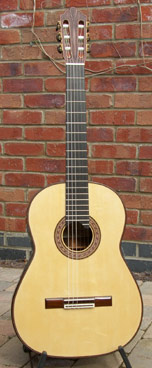

Gina front
this guitar features a small amount of hazel fichte (bear claw) especially across the soundboard below the bridge.

SPECIFICATION
Soundboard: European spruce
Back: Brazilian rosewood
Sides: Brazilian rosewood
Neck: American mahogany
Fingerboard: Ebony
Scale length: 650mm
Width at top nut: 52mm
Body length: 492mm
Upper bout: 280mm
Waist: 244mm
Lower bout: 368mm
Depth at heel: 92mm
Depth at bottom: 102mm
Weight: Kg 1.750
Bridge: 6 double hole ties
Frets: 20
7th fret marker 9 ct gold inset dot

Gina rosette
Each rosette is individually made with very slight variation in design. The outer & inner circles of the rosette are the same as the purfling around the edge of the soundboard.

Gina

with DEFRA certification
for Brazilian rosewood

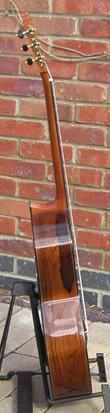

Gina side

Gina heel
Dark rosewood binding compliments the very special aged brazilian rosewood back and sides

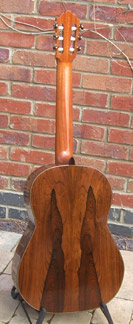

Gina back

Body Volume: 12.14 litres
This refers to the approximate internal capacity of the soundbox and gives. for comparison, a more accurate size of the different models that I make.
ie if the body cavity were filled with a liquid this is how many litres it would hold.

Gina head
Robson tuners hand made in england with ebony buttons

Gina bass binding
Double thickness binding on bass side of guitar provides for greater rounding and more comfort.
