Guitar Gallery 3 of 20

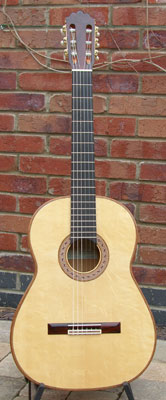

Celia front
The soundboard is covered all over with beautiful extreme markings of hazel fichte (bear claw)
Soundboard: European spruce
Back: Spanish cypress
Sides: Spanish cypress
Neck: Cedar
Fingerboard: Ebony
Scale length: 650mm
Width at top nut: 52mm
Body length: 493mm
Lower bout: 367mm
Upper bout: 280mm
Waist: 245mm
Depth at heel: 86mm
Depth at bottom: 99mm
Weight: Kg 1.468
Bridge: 6 holes
Frets: 19
Celia rosette
Each rosette is individually made with very slight variation in design.
This instrument owes it's inspiration to the flamenco guitars made by Marcelo Barbero
Similar made to order
Celia binding
Tasmanian blackwood for bindings and rosette inner and outer circles.
Double thickness binding on bass side of guitar provides for greater rounding and more comfort

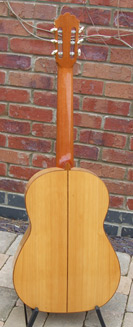

Celia back
Body Volume:
12.8 litres
This refers to the approximate internal capacity of the soundbox and gives. for comparison, a more accurate size of the different model that I make.
ie if the body cavity were filled with a liquid this is how many litres it would hold.
Celia head
Fustero, traditional Lyre design Spanish made tuners
