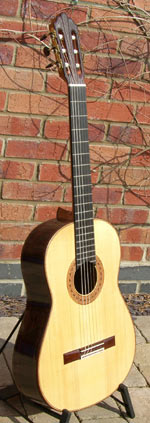

Crystal front

SPECIFICATION
Soundboard: European spruce
Back: Indian rosewood
Sides: Indian rosewood
Neck: American mahogany
Fingerboard: Ebony
Scale length: 650mm
Width at top nut: 52mm
Body length: 484mm
Lower bout: 358mm
Upper bout: 273mm
Waist: 239mm
Depth at heel: 85mm
Depth at bottom: 97mm
Weight: Kg 1.562
Bridge: 6 double hole ties
Frets: 19
7th fret marker 9 ct gold inset dot

Crystal rosette
Each rosette is individually made with very slight variation in design. The outer & inner circles of the rosette are the same as the purfling around the edge of the soundboard.
Crystal
This instrument owes it's inspiration to the guitars made by Antonio de Torres

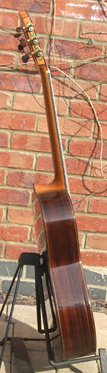

crystal side

Crystal bridge
most of my guitars have bridge with 12 holes for good break angle and ease of re-stringing. (see specification for each guitar)

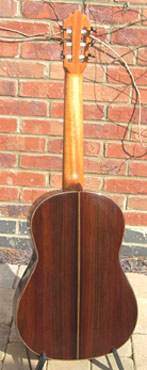

crystal back

Body Volume:
11.25 litres
This refers to the approximate internal capacity of the soundbox and gives. for comparison, a more accurate size of the different models that I make.
ie if the body cavity were filled with a liquid this is how many litres it would hold.

Thomas Rubner tuning machines
