Guitar Gallery 16 of 20



SPECIFICATION
Soundboard: European spruce

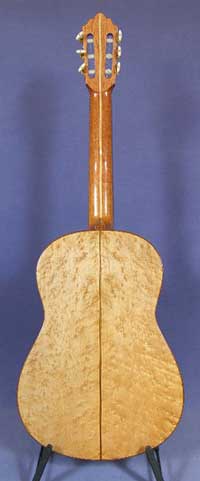

Back: Birdseye maple
Sides: Birdseye maple outer
Maple inner
Neck: Cedrilla & maple splice
Fingerboard: Ebony
Scale length: 640mm
Width at top nut: 50mm
Body length: 494mm
Lower bout: 358mm
Upper bout: 274mm
Waist: 238mm
Depth at heel: 86mm
Depth at bottom: 98mm
Weight: Kg 1.74
Bridge: 6 double hole ties
Frets: 20
7th fret marker 9 ct gold inset dot

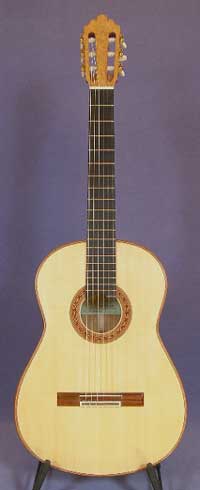

Each rosette is individually made with very slight variation in design. The outer & inner circles of the rosette are the same as the purfling around the edge of the soundboard.





Heike
This instrument owes it's inspiration to the guitars made by Antonio de Torres
Scale length 640 mm

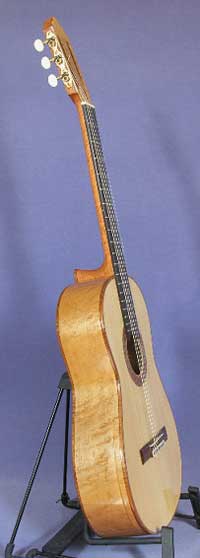

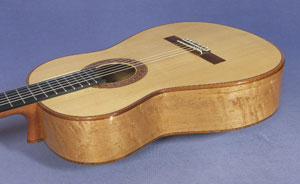

The laminate sides of this guitar
are Birdseye maple outer skin
and Maple inner skin. It has a raised binding on the lower bout bass side of the guitar.

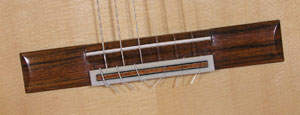

most of my guitars have bridge with 12 holes for good break angle and ease of re-stringing.
(see specification for each guitar)





Body Volume:
11.3 litres
This refers to the approximate internal capacity of the soundbox and gives. for comparison, a more accurate size of the different models that I make.
ie if the body cavity were filled with a liquid this is how many litres it would hold.

Birdseye maple head veneer
Thomas Rubner tuners with imitation ivoryl buttons
