Guitar Gallery 18 of 20
flamenco
Clear Golpeador (tap Plate) on treble and bass mid section of guitar
SPECIFICATION
Soundboard:
European spruce
Back:
Spanish cypress
Sides:
Spanish cypress
Neck:
Cedar with Maple splice
Fingerboard:
Ebony
Scale length:
650mm
Width at top nut:
52mm
Body length:
493mm
Lower bout:
367mm
Upper bout:
280mm
Waist:
245mm
Depth at heel:
85mm
Depth at bottom:
99mm
Weight:
Kg 1.37
Bridge:
6 double holes
Frets:
19

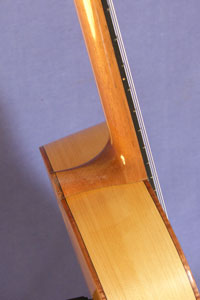

Double thickness binding on bass side of guitar provides for greater rounding and more comfort
The Amazaque bridge has six double holes in the tie block providing for good break angle of the strings.
Isabel
This instrument owes it's inspiration to the flamenco guitars made by Marcelo Barbero
Sister to Izarra
9 ct gold position marker
at the 7th fret
Body Volume:
11.6 litres
This refers to the approximate internal capacity of the soundbox and gives. for comparison, a more accurate size of the different model that I make.
ie if the body cavity were filled with a liquid this is how many litres it would hold.
Gotoh high quality tuners
Tasmanian blackwood for bindings and rosette inner and outer circles.
